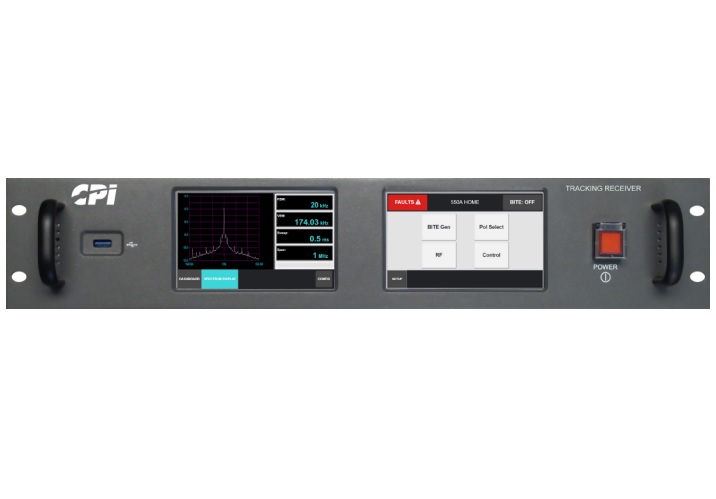

CPI Tracking Receiver 500 Series

For over 50 years, CPI Antenna Technologies experienced engineering staff has been developing high-precision, economical satellite tracking and control systems. The Model 500 series of tracking receivers provides a high quality, cost effective solution as a beacon receiver for satellite tracking, spectrum display, and Uplink Power Control (UPC) receiver source. The Receiver is an integrated rack mounted (2RU) chassis that includes: - Dual touch screen display system with intuitive user interface - Embedded control and DSP processors - Digital or analog receiver - Up to 4 internal block down converters for any frequency band combination from L through Ka - Ethernet, EIA-232/422 serial ports, and analog tracking signal output - Internal L-Band test signal generator

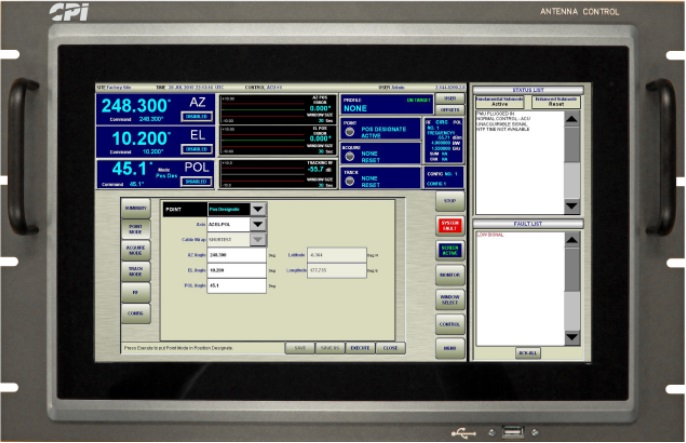

CPI Antenna Control System 990

The CPI Antenna Technologies’ Model 990, offers excellent satellite tracking and control. It is ideally suited for almost any full motion antennas for precision satellite, spacecraft, or celestial tracking applications. The system is comprised of an Antenna Control Unit (ACU), Tracking Receiver Unit (TRU) and a Power Drive Unit (PDU) which are linked via dedicated Ethernet connections. This provides flexibility in locating the key system components, allows for variable separation distances and provides immunity to electrical ground plane transients. The Model 990 is Intelsat- Standard A compliant for great tracking performance, offers extensive modes for pointing, acquisition and tracking and its software is field-upgradable via a simple USB interface. In addition, the Model 990 is CE compliant for EU applications and features a touch-screen large viewing angle color display for modern user interfaces.

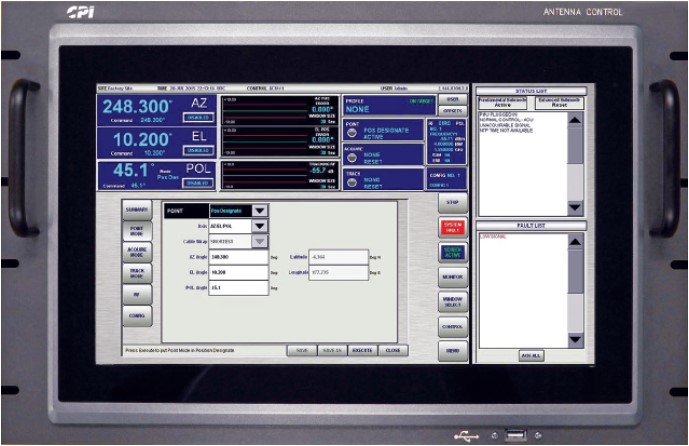

CPI Antenna Control System 980

The CPI Antenna Technologies’ Model 980, offers excellent satellite tracking and control. It is ideally suited for almost any full motion antennas for precision satellite, spacecraft, or celestial tracking applications. The system is comprised of an Antenna Control Unit (ACU), Tracking Receiver Unit (TRU) and a Power Drive Unit (PDU) which are linked via dedicated Ethernet connections. This provides flexibility in locating the key system components, allows for variable separation distances and provides immunity to electrical ground plane transients. The Model 980 is Intelsat- Standard A compliant for great tracking performance, offers extensive modes for pointing, acquisition and tracking and its software is field-upgradable via a simple USB interface. In addition, the Model 980 is CE compliant for EU applications and features a touch-screen large viewing angle color display for modern user interfaces.

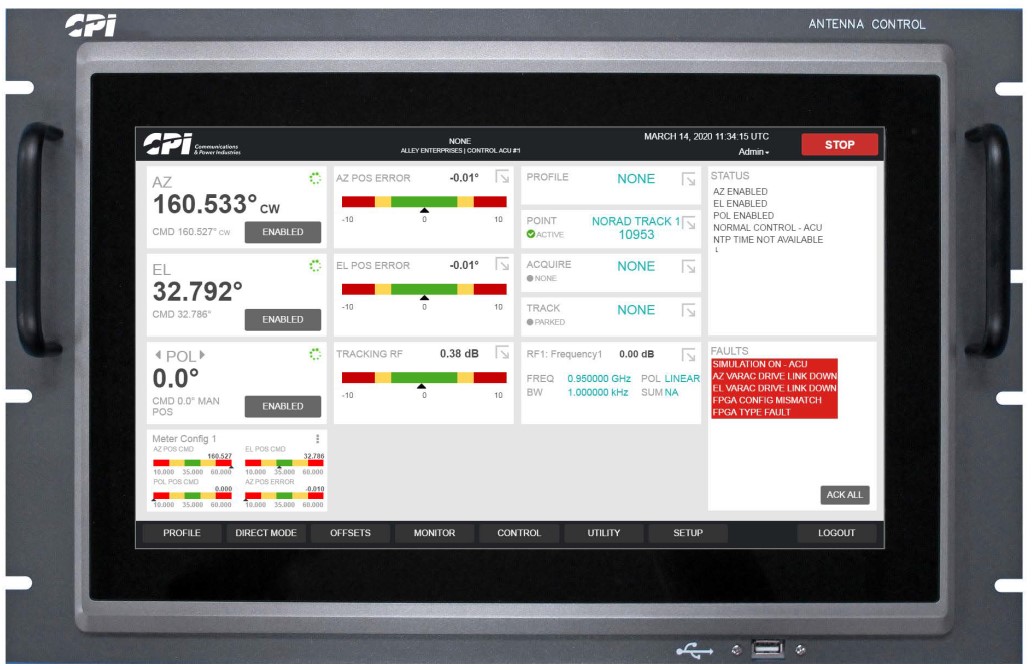

CPI Antenna Control System 970

The CPI Antenna Technologies’ Model 970, offers excellent satellite tracking and control. It is ideally suited for almost any full motion antennas for precision satellite, spacecraft, or celestial tracking applications. The system is comprised of an Antenna Control Unit (ACU), Tracking Receiver Unit (TRU) and a Power Drive Unit (PDU) which are linked via dedicated ethernet connections. This configuration provides flexibility in locating the key system components, allows for variable separation distances, and provides immunity to electrical ground plane transients. The Model 970 is Intelsat- Standard A compliant for great tracking performance, offers extensive modes for pointing, acquisition and tracking and its software is field-upgradable via a simple USB interface. In addition, the Model 970 is CE compliant for EU applications and features a touch-screen large viewing angle color display for modern user interfaces.

Antenna Control Systems 950A

The CPI Antenna Technologies’ Model 950A Antenna Control System is comprised of an Antenna Control Unit (ACU), Tracking Receiver Unit (TRU) and a Power Drive Unit (PDU) which are linked via dedicated Ethernet connections. This configuration provides flexibility in locating the key system components, allows for variable separation distances, and provides immunity to electrical ground plane transients. The Model 950A is Intelsat - Standard A compliant for great tracking performance, offers extensive modes for pointing, acquisition and tracking and its software is field-upgradable via USB or remote interfaces. In addition, the Model 950A is CE compliant for EU applications and features a large color touchscreen display for modern user interfaces.
